ownCloud Administrators Manual

External storage support

ownCloud provides the ability to mount an external storage device. The external storage devices serves as a secondary storage device within ownCloud.

The ownCloud Admin has the ability to create such a mount. In addition, the ownCloud Admin may decide to provide the end user the ability to create the mount. The mounts may be created on a per-user, per group, or all user basis.

Supported mounts

The following lists the supported storage types.

  • Local
  • Amazon S3
  • Dropbox
  • FTP
  • Google Drive
  • OpenStack Object Storage
  • SMB/CIFS
  • ownCloud/WebDAV
  • SFTP
  • iRODS

Configuration

Enable the app

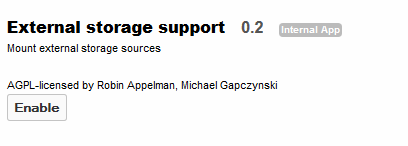

From the APPs Page within ownCloud, select External Storage Support and enable.

10000000000001980000009271BE0D26_png

Configure mounts

As stated previously, the Admin has the ability to configure these mounts, as well as decide whether an end user can configure mounts for themselves. For the Admin, the configuration is performed in the Admin page. For end users, the configuration is performed in the Personal Page. This document will discuss how the Admin configures the mounts, however, the configuration is the same for the end user.

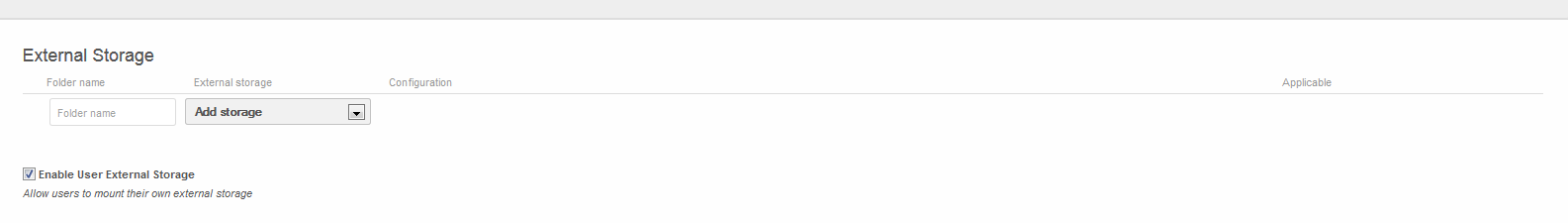

On the Admin page, scroll to External Storage:

1000000000000631000000E19D116AA0_png

Enable users to mount their own devices

In order to allow end users to mount their own devices, select the radio button next to Enable User External Storage.

Local Storage

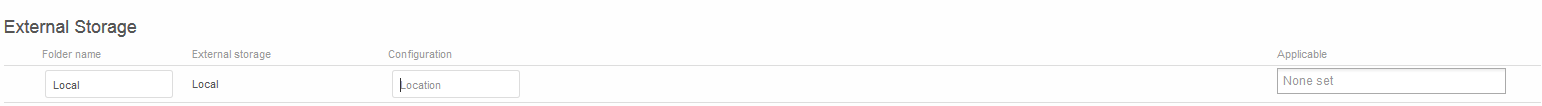

This is used to mount storage that is outside ownCloud’s data directory

10000000000006060000006A0106CA0C_png

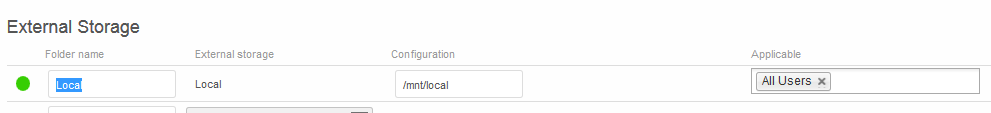

  • Location – The directory to mount
  • Applicable – A list users of who can see this mount

10000000000003DF00000071A41D8A1F_png

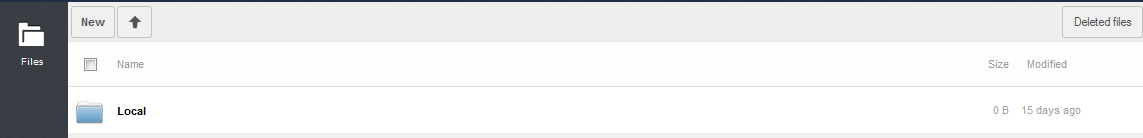

Note: When configured correctly, a Green Light will appear next to the Folder Name. If misconfigured, a Red Light will appear.

10000000000004770000008AAF3CFFDB_png

Amazon S3

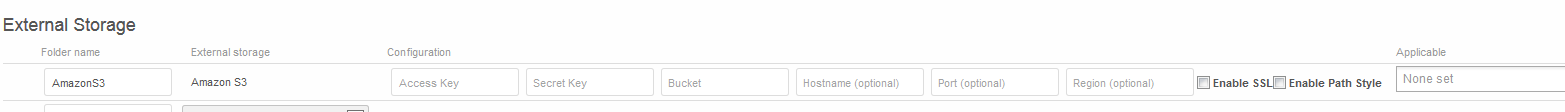

This is used to mount to an S3 server

100000000000061D0000007047877972_png

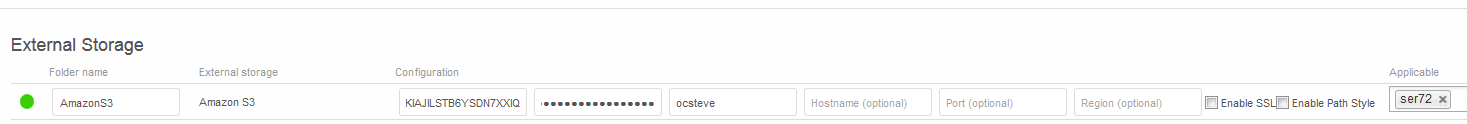

  • Access Key – The access key provided by the S3 storage provider
  • Secret Key – The secret key provided by the S3 storage provider
  • Bucket – The bucket created within the S3 storage server
  • Hostname (optional) – The host of the s3 storage server
  • Port (optional) – The port to communicate to the host on
  • Region (optional) – The region where the storage exists
  • Applicable – A list of users who can see this mount

10000000000005BB0000007C1DF71FA7_png

Note

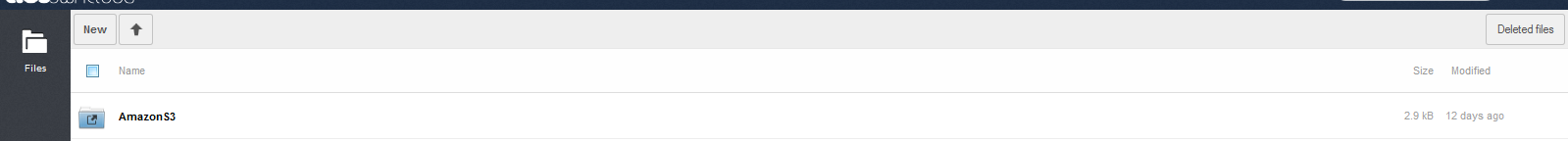

When configured correctly, a Green Light will appear next to the Folder Name. If misconfigured, a Red Light will appear.

100000000000063F00000090AAE1FA4A_png

Dropbox

Mounts a dropbox in the Dropbox cloud into the virtual file system.

Configure DropBox

Log onto the Dropbox Developers page:

Select App Console:

10000000000000A800000073F49785A6_png

This will ask you to accept terms and conditions.

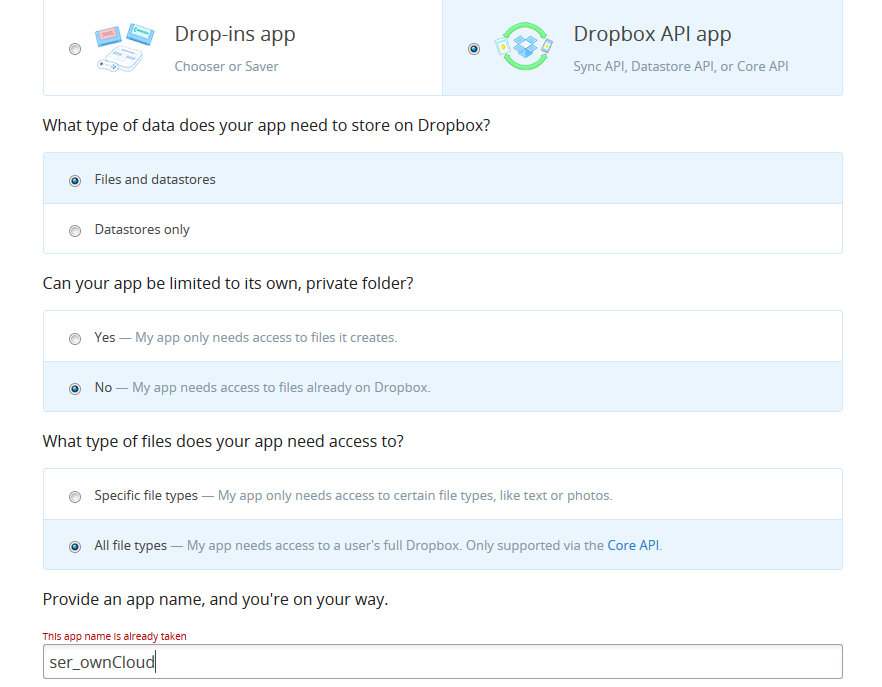

Select Dropbox API and configure down the page as follows:

1000000000000372000002AF943ADDA0_png

The name can be any unique name desired.

Select Create App

10000000000000950000004412998BE7_png

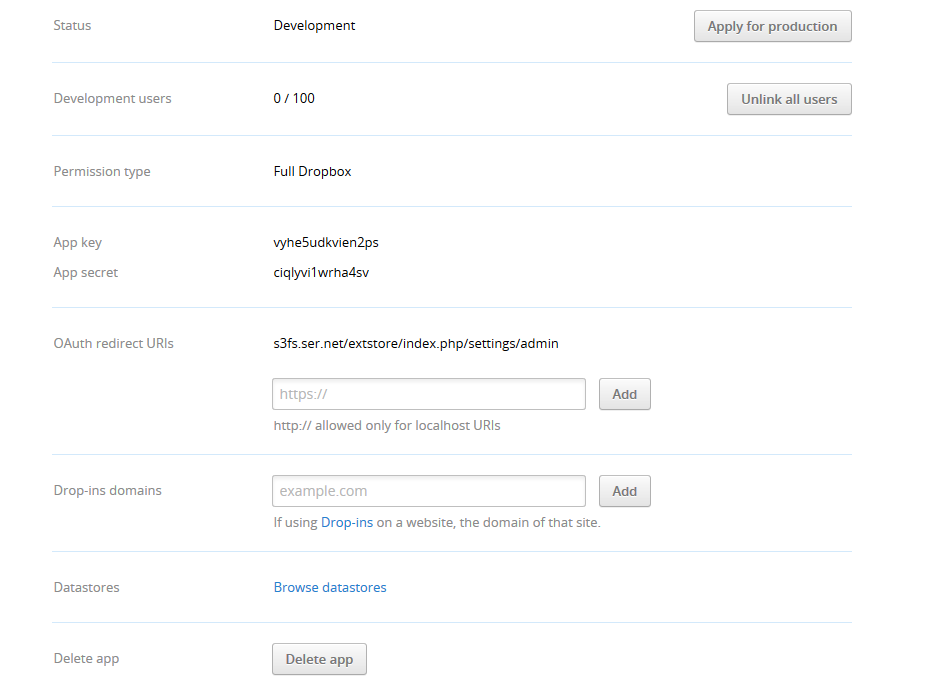

Enter the OAuth redirect URI as follows:

http://<ownCloud instance>/index.php/settings/personal
http://<ownCloud instance>/index.php/settings/admin

10000000000003A6000002A9C7A660BE_png

Take note of the App Key and App Secret and enter into ownCloud.

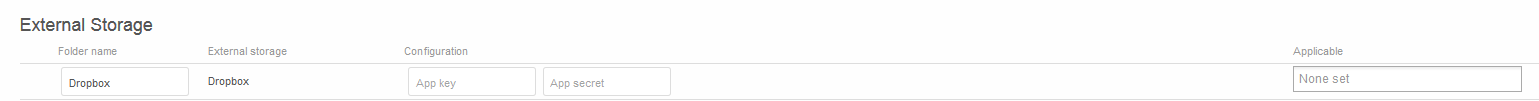

ownCloud Configuration

100000000000060300000065DF96536B_png

  • App key – The app key to login to your Dropbox
  • App secret – The app secret to login to your Dropbox
  • Applicable – A list users of who can see this mount

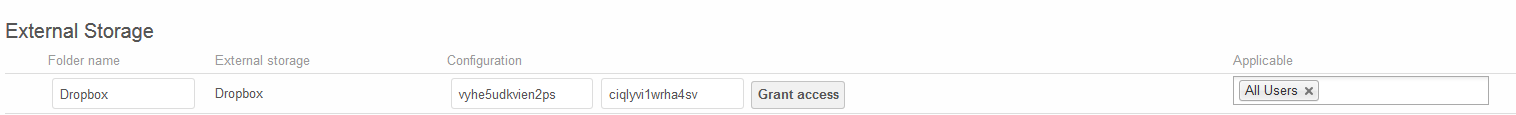

10000000000005EC00000073E678DFEC_png

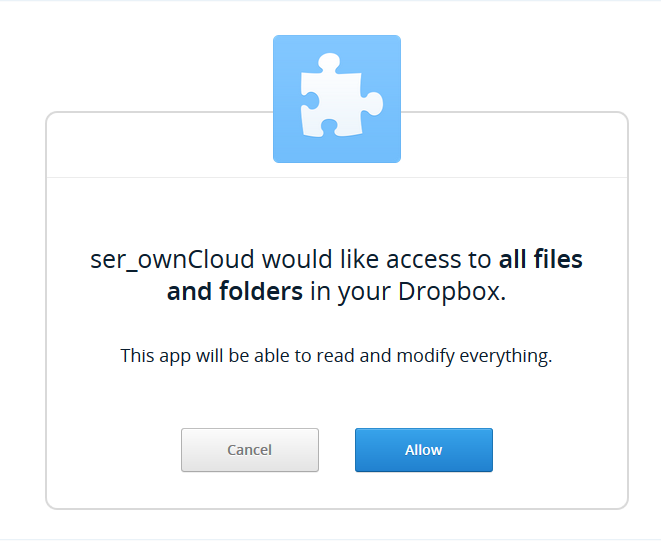

Select “Grant Access” and the following appears

10000000000002950000021E245F6883_png

Note if you are not logged into Dropbox, you will first be prompted to login. Select Allow.

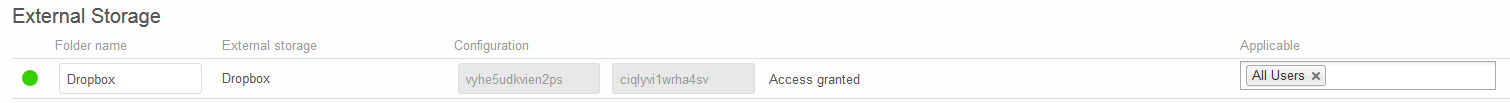

10000000000005E6000000676902E040_png

Note

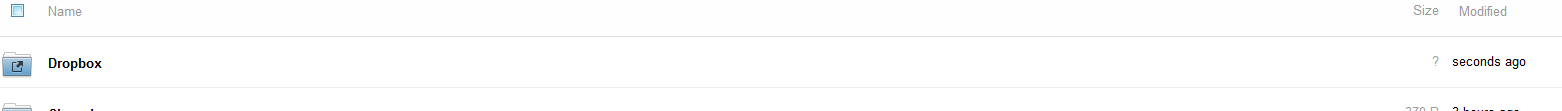

When configured correctly, a Green Light will appear next to the Folder Name. If misconfigured, a Red Light will appear.

100000000000061A0000006FC014C3A4_png

FTP

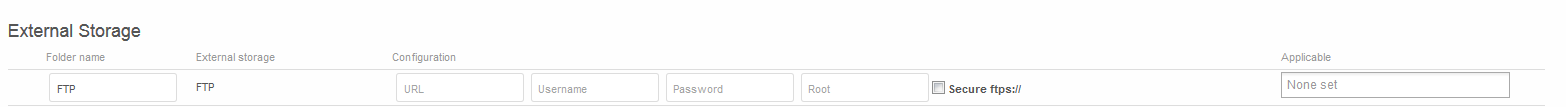

Mounts a folder on a remote FTP or FTPS server

100000000000061E0000006BCF9ECC0B_png

  • URL – The hostname of the FTP/FTPS server
  • Username – The username to login to the FTP/FTPS server
  • Password – The password to login to the FTP/FTPS esrver
  • Root – The folder inside the FTP/FTPS server to mount (optional – defaults to ‘/’)
  • Secure ftps:// – Whether to use ftps:// to connect to the FTP server instead of ftp://
  • Applicable – A list users of who can see this mount

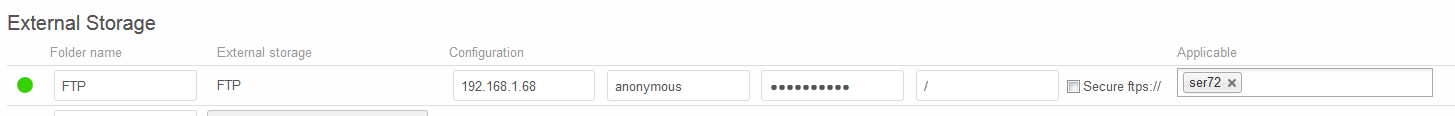

10000000000005AF00000074604B1A67_png

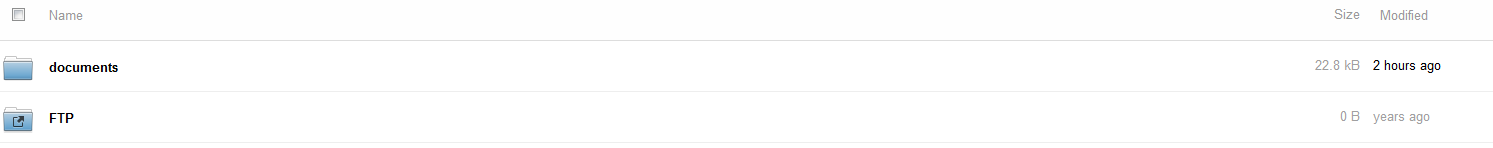

Note

When configured correctly, a Green Light will appear next to the Folder Name. If misconfigured, a Red Light will appear.

10000000000005D50000009458C5EE48_png

GoogleDrive

Mounts a share in the Google cloud.

Configure GoogleDrive

All applications that access a Google API must be registered through the “Google Cloud Console”. This can be accessed at the following URL:

https://cloud.google.com

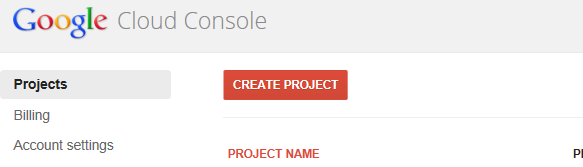

Once logged into Google, create a project by selecting Create Project

1000000000000247000000A77440E4D3_png

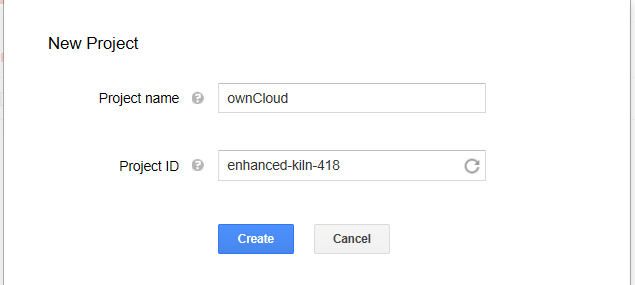

Enter a Project name and either keep or enter a new Project ID 100000000000027B0000011D10F70F88_png

Select the project and choose the APIs & auth menu entry 10000000000000B600000120706C3C75_png

Enable Drive API and Drive SDK and then select the

100000000000003800000018D49F1CE7_png

next to either Drive API or Drive SDK

10000000000004100000005657010336_png

Select API Access on the menu

10000000000000CD000000ECA8DE7780_png

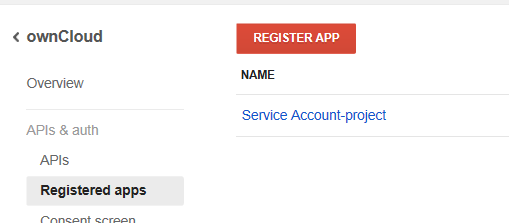

Select REGISTER APP

10000000000001FD000000DF8D2D7546_png

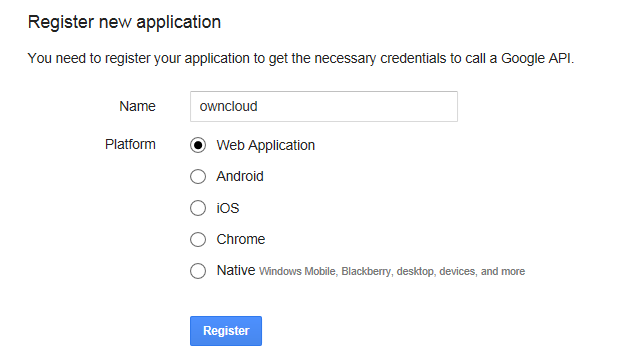

Enter a name and select Web Application

10000000000002840000016729388B7F_png

Expand OAuth 2.0 Client ID Enter the following in the REDIRECT URI field:

http://<ownCloud instance>/index.php/settings/personal
http://<ownCloud instance>/index.php/settings/admin

Note

The <ownCloud instance> must be a Fully Qualified Domain Name. It cannot be an IP address!

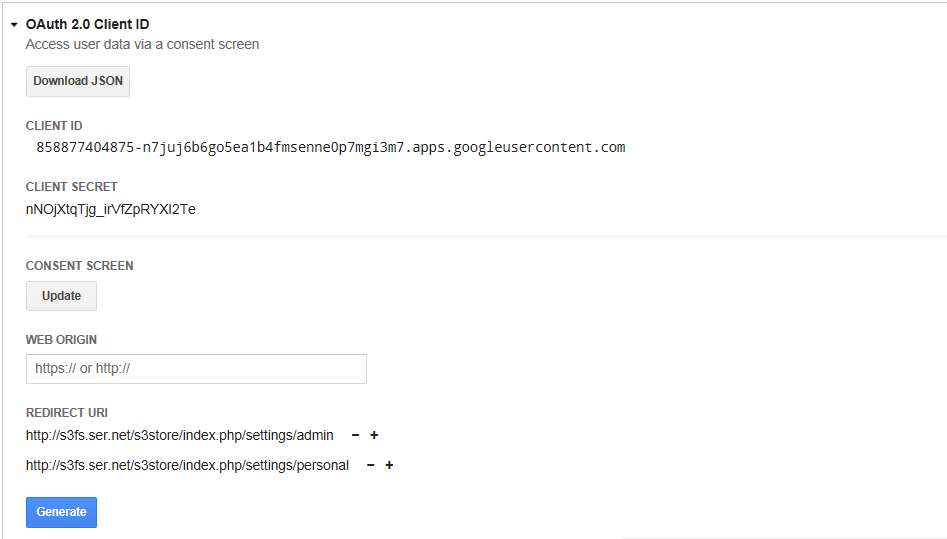

Select Generate

10000000000003B30000021B5EE5D338_png

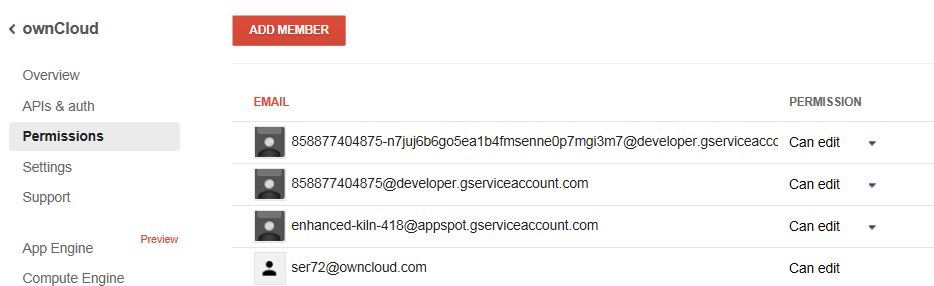

Verify that the required email addresses are in the Permissions tab

10000000000003A60000011E274A1A28_png

Configure ownCloud

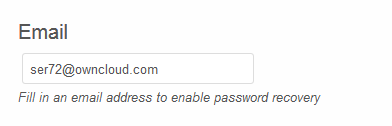

Prior to configuring the mount, an E-mail address needs to be configured in the Personal tab

10000000000001880000007EA4444400_png

10000000000006000000005EDA7B96BE_png

  • Client ID – The client id to login to the Google Drive from OAuth 2.0 Client ID above
  • Client secret – The client secret to login to the Google Drive from OAuth 2.0 Client ID above
  • Applicable – A list users of who can see this mount

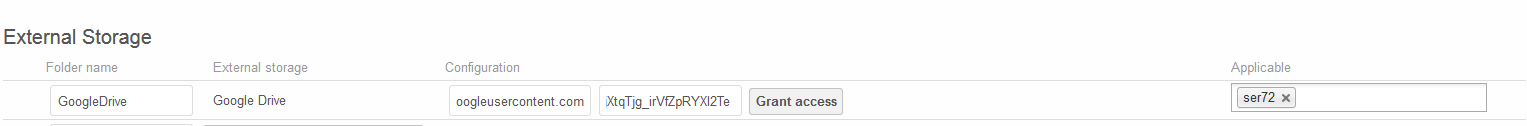

Once the required fields are filled in, a Grant access button appears. Select this button.

10000000000005F70000007E43DB8026_png

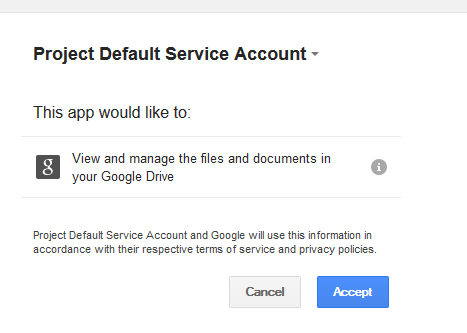

The following screen appears. Select Accept

10000000000001D30000014DC251C948_png

10000000000004C0000000795BB2C146_png

1000000000000552000000BF22E90239_png

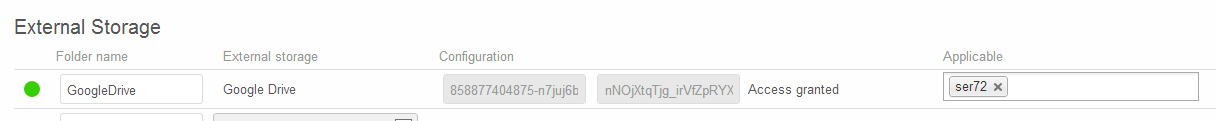

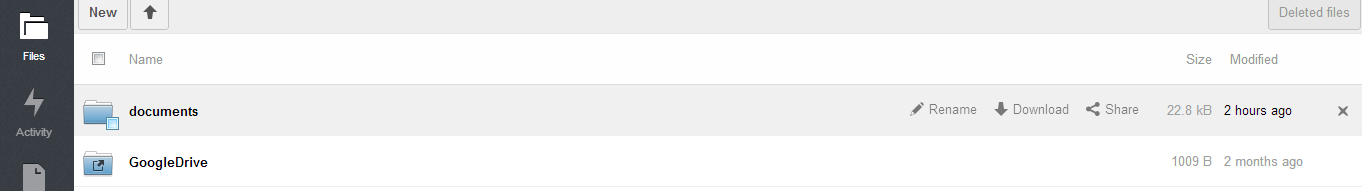

Note

When configured correctly, a Green Light will appear next to the Folder Name. If misconfigured, a Red Light will appear.

OpenStack Object Storage

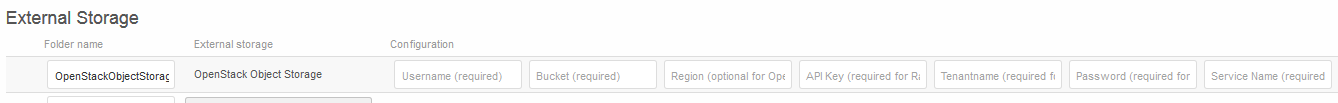

Mounts a container on an OpenStack Object Storage server.

100000000000053A00000067708C8F53_png

10000000000002170000004A27056037_png

  • Username
  • Bucket
  • Region
  • API Key
  • Tenantname
  • Password
  • Service Name
  • URL of identity Endpoint
  • Timeout of HTTP request
  • Applicable – A list users of who can see this mount

Note

When configured correctly, a Green Light will appear next to the Folder Name. If misconfigured, a Red Light will appear.

SMB/CIFS

Mounts a folder on a remote Samba server, NAS appliance, or Windows machine.

10000000000005FA0000005CE8491B77_png

  • URL – The host name of the Samba server.
  • Username – The user name used to login to the Samba server.
  • Password – The password to login to the Samba server.
  • Share – The share on the Samba server to mount.
  • Root – The folder inside the Samba share to mount (optional, defaults to ‘/’)
  • Applicable – A list users of who can see this mount

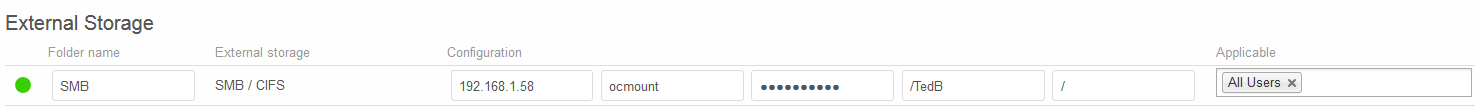

10000000000005C30000006CAFFAAD61_png

Note

When configured correctly, a Green Light will appear next to the Folder Name. If misconfigured, a Red Light will appear.

Note

The SMB backend requires smbclient to be installed on the server.

10000000000005D00000003B29340A7A_png

ownCloud/WebDAV

Mounts a folder on a WebDAV server (or another ownCloud instance via WebDAV).

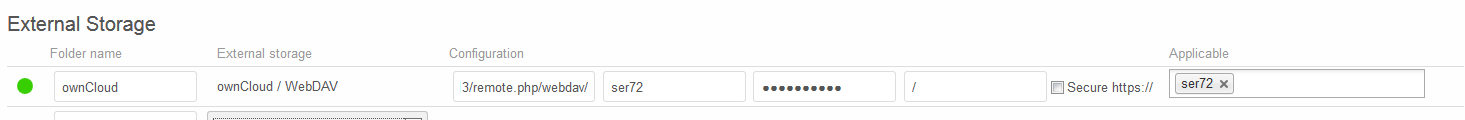

10000000000005F70000005F0912E904_png

  • URL – The hostname of the WebDAV server.
  • Username – The username used to login to the WebDAV server.
  • Password – The password used to login to the WebDAV server.
  • Root – The folder inside the WebDav server to mount (optional, defaults to ‘/’)
  • Secure https:// - Whether to use https:// to connect to the WebDav server instead of http://
  • Applicable – A list users of who can see this mount

10000000000005B90000007866D92D14_png

Note

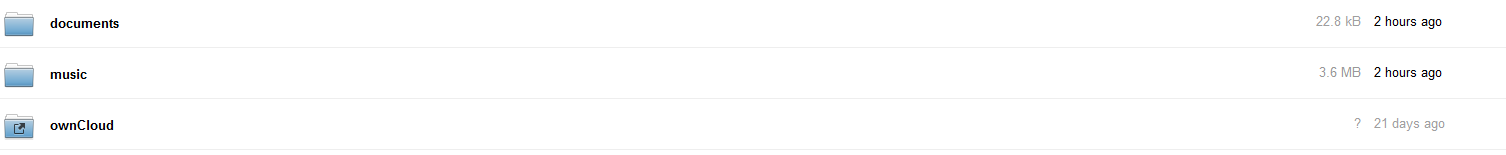

When configured correctly, a Green Light will appear next to the Folder Name. If misconfigured, a Red Light will appear.

10000000000005E20000009B1BA5A8CF_png

SFTP

Mounts a folder on a remote SSH server.

10000000000005FF0000005F35710398_png

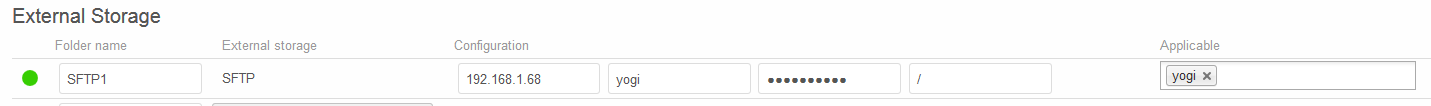

  • URL – The hostname of the SSH server.
  • Username – The username used to login to the SSH server.
  • Password – The password used to login to the SSH server.
  • Root – The folder inside the SSH server to mount (optional, defaults to ‘/’)
  • Applicable – A list users of who can see this mount

10000000000005970000006AE23997C9_png

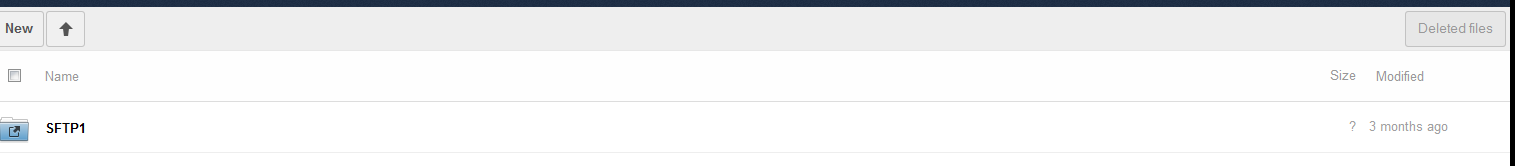

Note

When configured correctly, a Green Light will appear next to the Folder Name. If misconfigured, a Red Light will appear.

10000000000005EB000000A68BA73E2D_png

iRODS

Mounts a folder on a iRODS server.

100000000000062A0000005F61A18950_png

  • Host
  • Port
  • Use ownCloud login
  • Username
  • Password
  • Authentication Mode
  • Zone
  • Applicable – A list users of who can see this mount

Note

When configured correctly, a Green Light will appear next to the Folder Name. If misconfigured, a Red Light will appear.

Configuration File

The configuration of mounts created within the External Storage App are stored in the data/mount.json file. This file contains all settings in JSON (JavaScript Object Notation) format. Two different types of entries exist:

  • Group mounts - Each entry configures a mount for each user in group
  • User mount – Each entry configures a mount for a single user or all users.

For each type, there is a JSON array with the user/group name as key and an array of configuration values as the value. Each entry consist of the class name of the storage backend and an array of backend specific options (described above) and will be replaced by the user login.

Although configuration may be done by making modifications to the mount.json file, it is recommended to use the Web-GUI in the administrator panel (as described in the above section) to add, remove, or modify mount options in order to prevent any problems.
